Robot Arm Series
We have made quality our habit. It’s not something that we just strive for – we live by this principle every day.

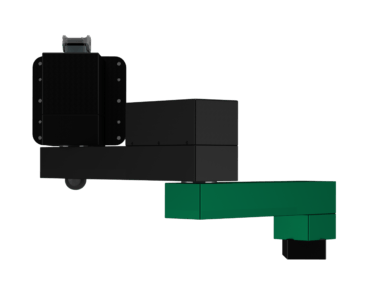

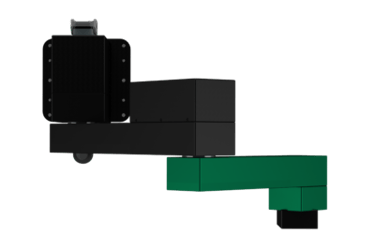

Pal i3
3-Axis Planar Robot is use to verify industrial motors and efficient for repetitive tasks with limited space.

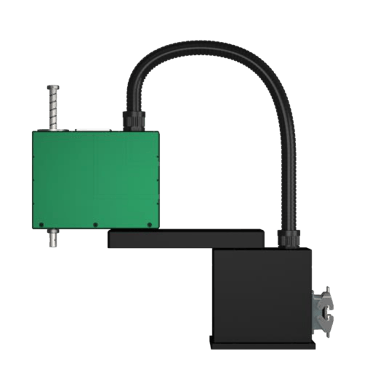

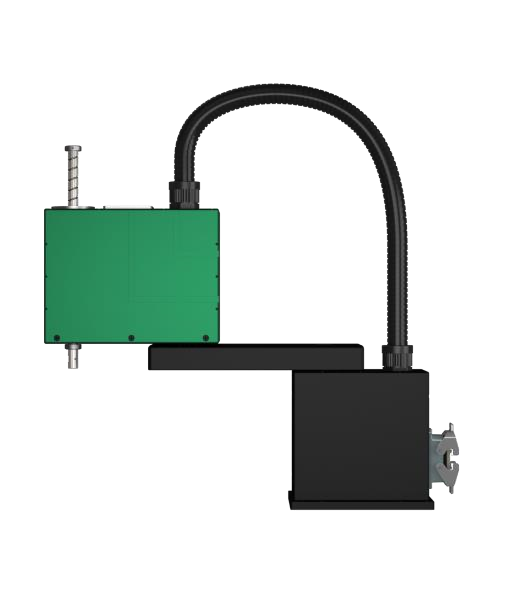

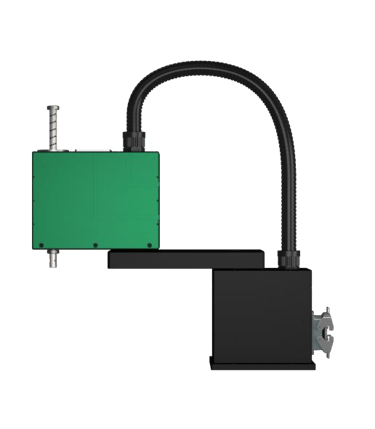

Pal i4
4-Axis SCARA Robot is use to verify industrial motor. It Repetitive and rapid transmission of small objects.

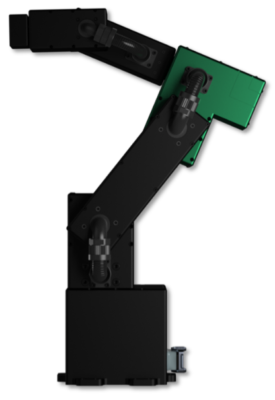

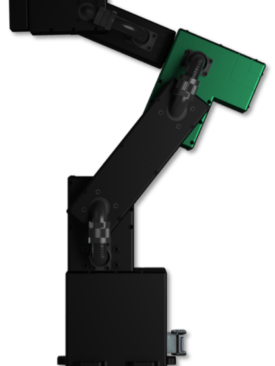

Pal i6
6-Axis Articulated Robot is use to verify industrial motor and perform various tasks reliably and quickly.
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=234,h=156,fit=crop/mv04R3PkQ3T04E33/pal_i3.fb9be970-mP47JxWkywsnNqWR.png)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=328,h=320,fit=crop/mv04R3PkQ3T04E33/pal_i3.fb9be970-mP47JxWkywsnNqWR.png)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=182,h=178,fit=crop,trim=28.41346153846154;0;56.82692307692308;0/mv04R3PkQ3T04E33/pal_i4.7833577b-m7VMl796NwIkp8y8.png)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=328,h=320,fit=crop,trim=28.29255319148936;0;59.72872340425531;0/mv04R3PkQ3T04E33/pal_i4.7833577b-m7VMl796NwIkp8y8.png)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=106,h=156,fit=crop/mv04R3PkQ3T04E33/pal_i6.4701ad73-AE0ML8WlWyt9kQWZ.png)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=328,h=320,fit=crop/mv04R3PkQ3T04E33/pal_i6.4701ad73-AE0ML8WlWyt9kQWZ.png)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=1920,fit=crop/mv04R3PkQ3T04E33/screenshot-2021-03-18-at-10.36.11-am-AMqxN94bBXcqGJlO.png)
SERIES #1: 3-Axis Planar Robot
A robot that can work in a vertical plane space of y-z. The limited movement required by various industrial facilities movement required by various industrial facilities can be implemented at an optimized cost, and maximise price-to-productivity

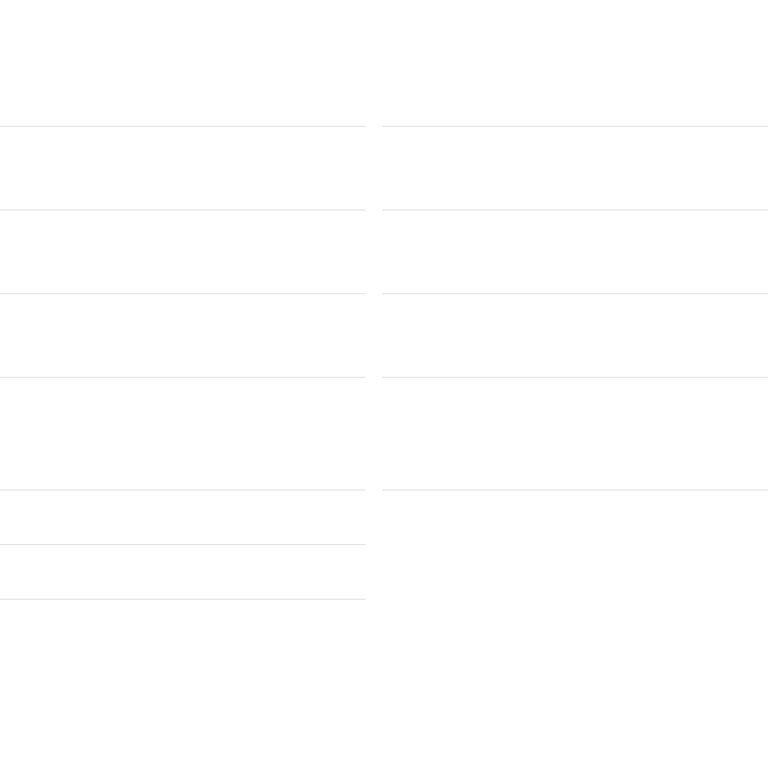

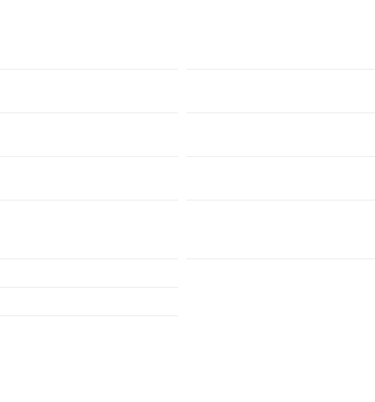

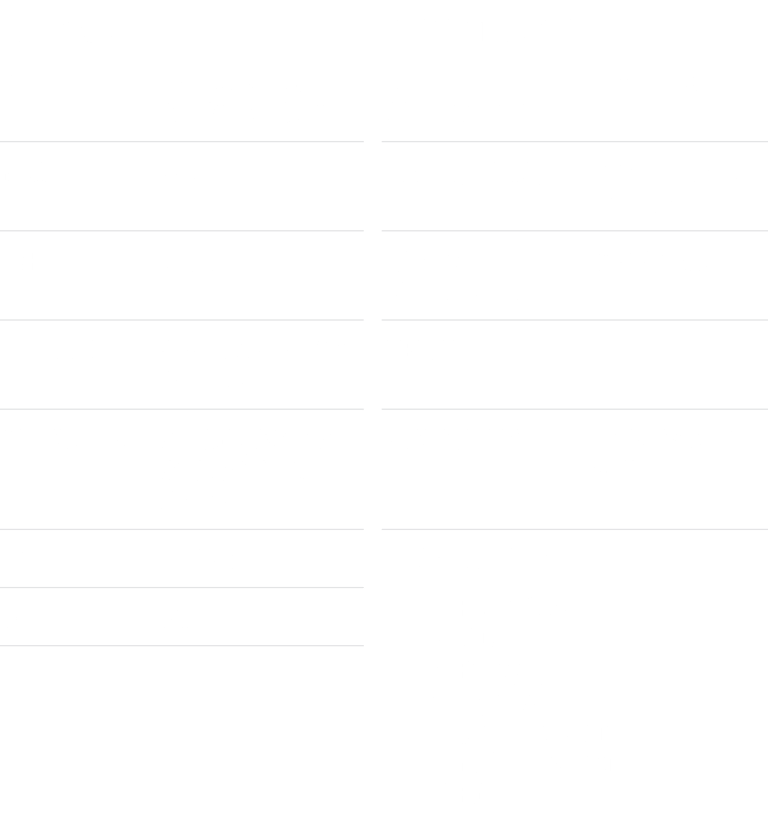

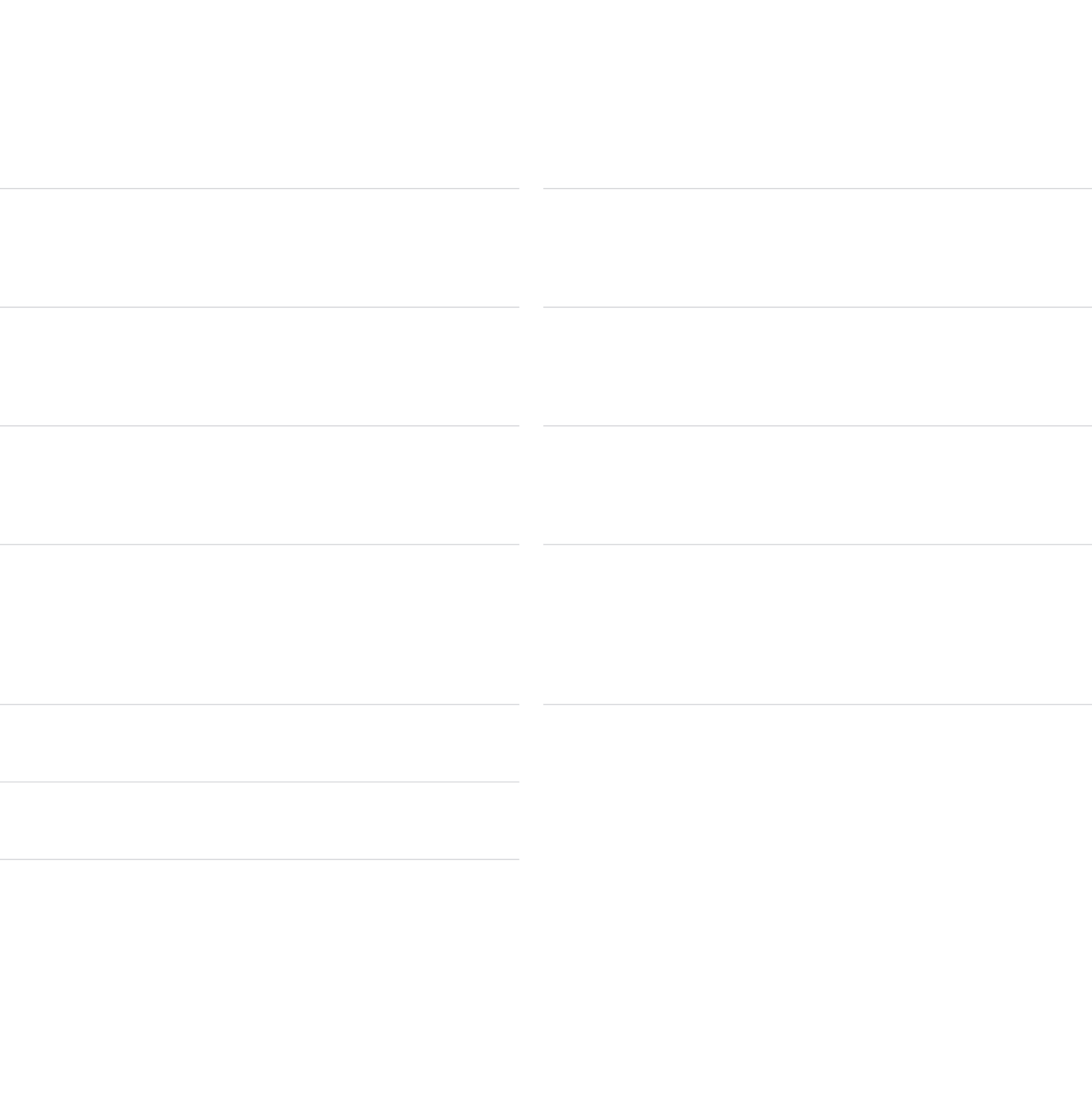

Technical Specifications
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=717,h=707,fit=crop,trim=17.715877437325908;0;17.715877437325908;0/mv04R3PkQ3T04E33/pal-i306-mjEQBXeWJ2iKyN50.png)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=328,h=351,fit=crop,trim=0;72.41025641025642;0;72.41025641025642/mv04R3PkQ3T04E33/pal-i306-mjEQBXeWJ2iKyN50.png)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=1920,fit=crop/mv04R3PkQ3T04E33/screenshot-2021-03-18-at-10.36.28-am-YNqp6KL53JFQErVd.png)
SERIES #2: 4-Axis Scara Robot
A Selective Compliance Assembly Robot Arm (SCARA) robot that implement x-y plane and z-axis depth motion. It is moving at high speed and uses mainly for the handling of small work pieces such as electronic parts

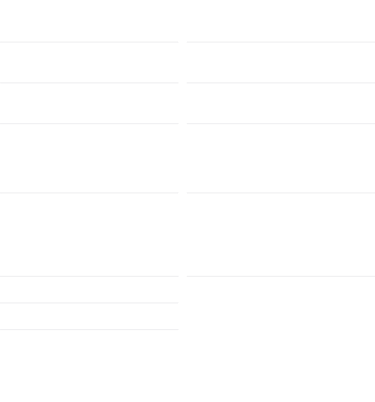

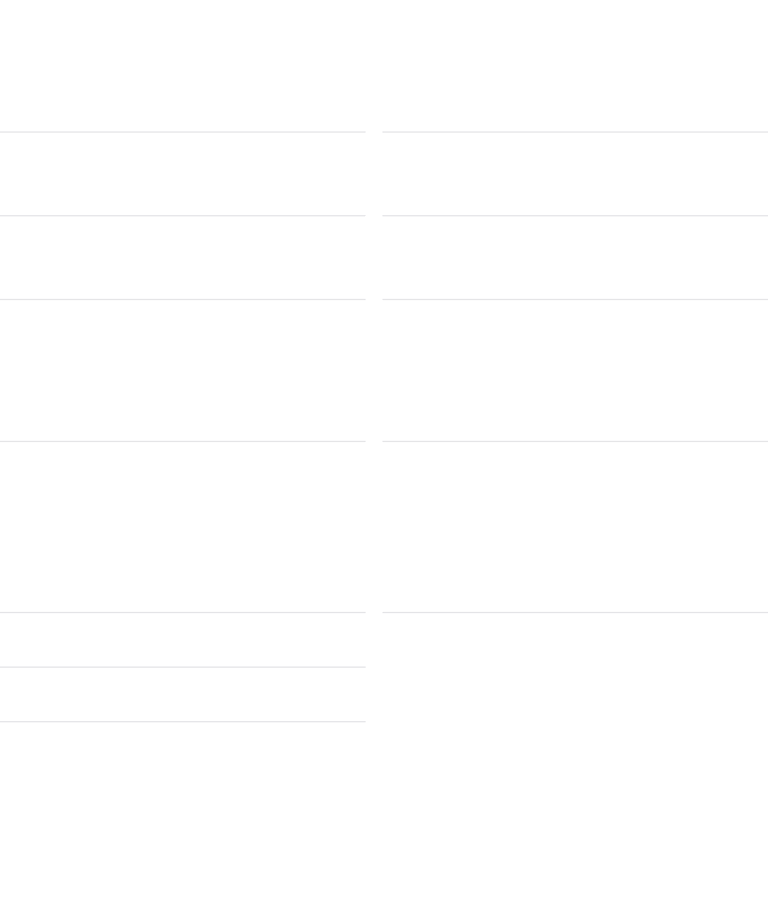

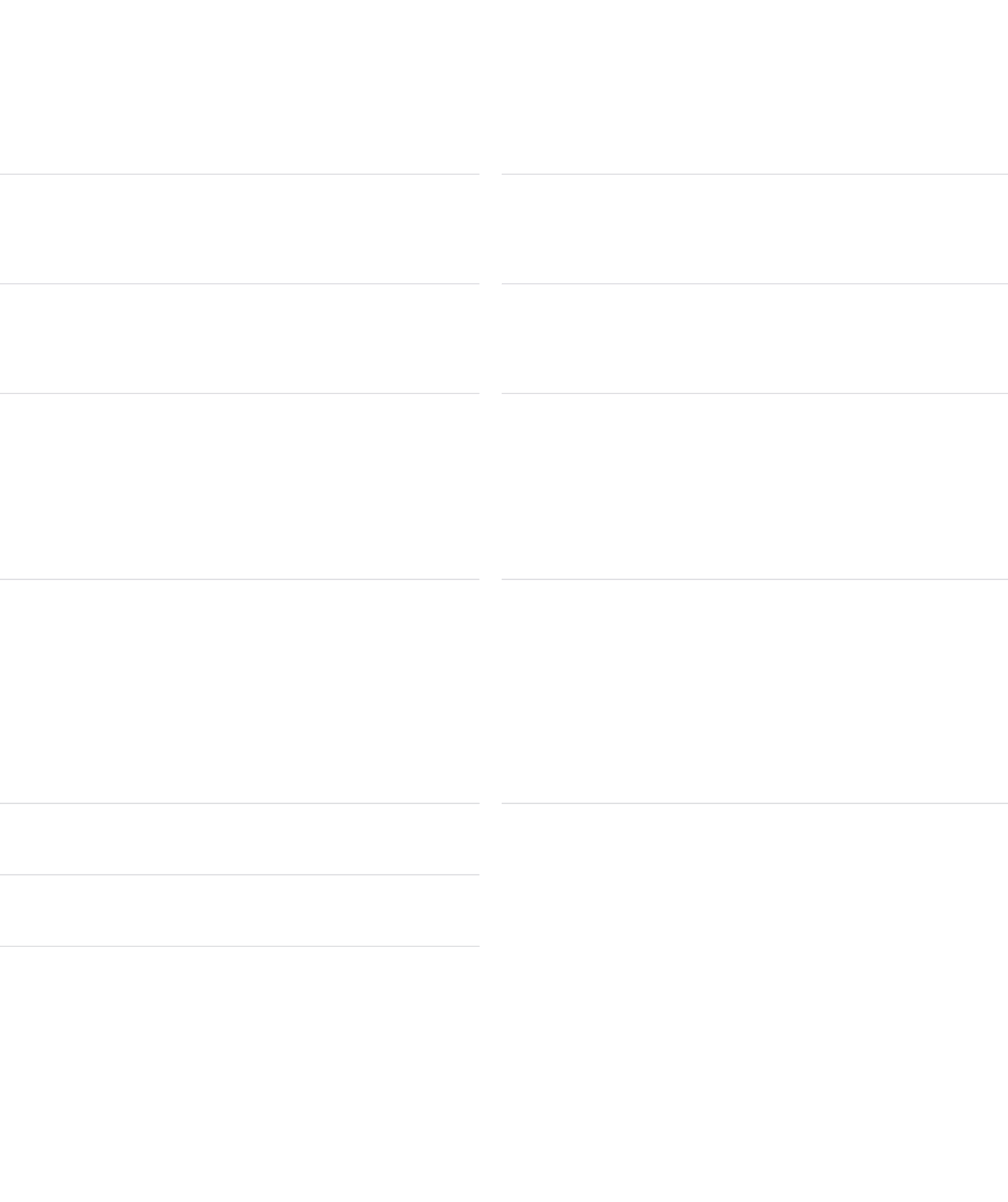

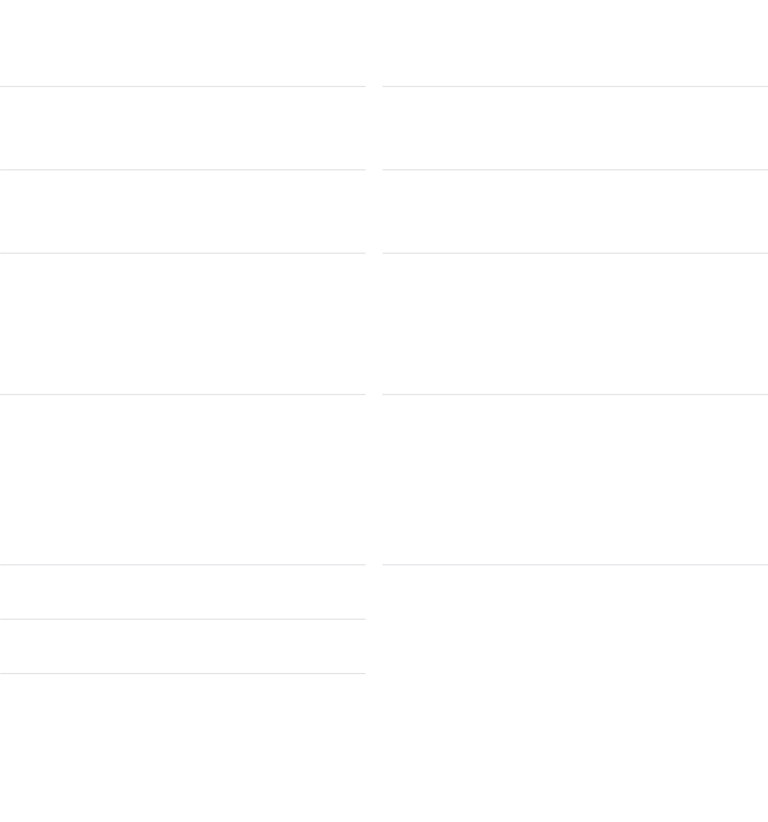

Technical Specifications
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=717,h=856,fit=crop,trim=0;2.5250696378830084;0;2.5250696378830084/mv04R3PkQ3T04E33/pal-i401-YBg8aKyNMDFX3XBK.png)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=328,h=351,fit=crop,trim=110.48593350383632;0;110.48593350383632;0/mv04R3PkQ3T04E33/pal-i401-YBg8aKyNMDFX3XBK.png)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=1920,fit=crop/mv04R3PkQ3T04E33/screenshot-2021-03-18-at-10.36.28-am-YNqp6KL53JFQErVd.png)
SERIES #3: 6-Axis, Articulated Robot
The Pal i6 is a vertical six-axis robot that can reach to all coordinates of the x, y and z three-dimensional space. It can be equipped with many different tools, covering a wide range of tasks in multiple industries.

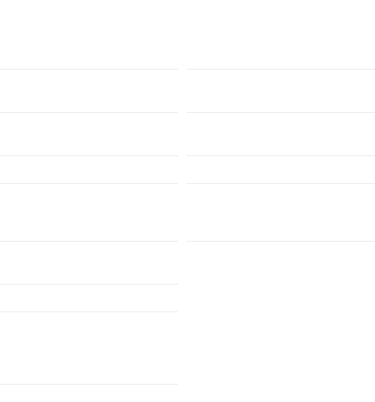

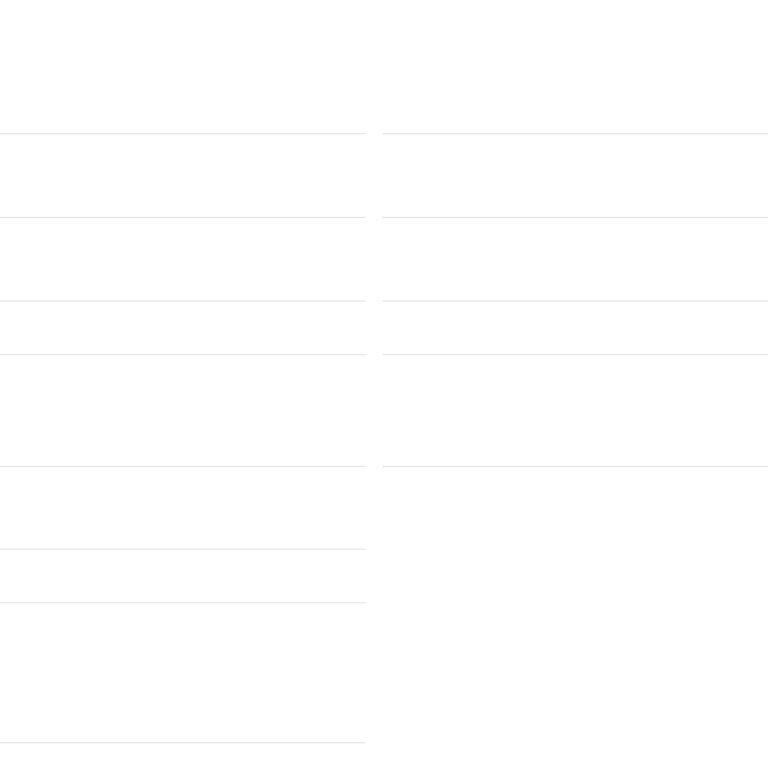

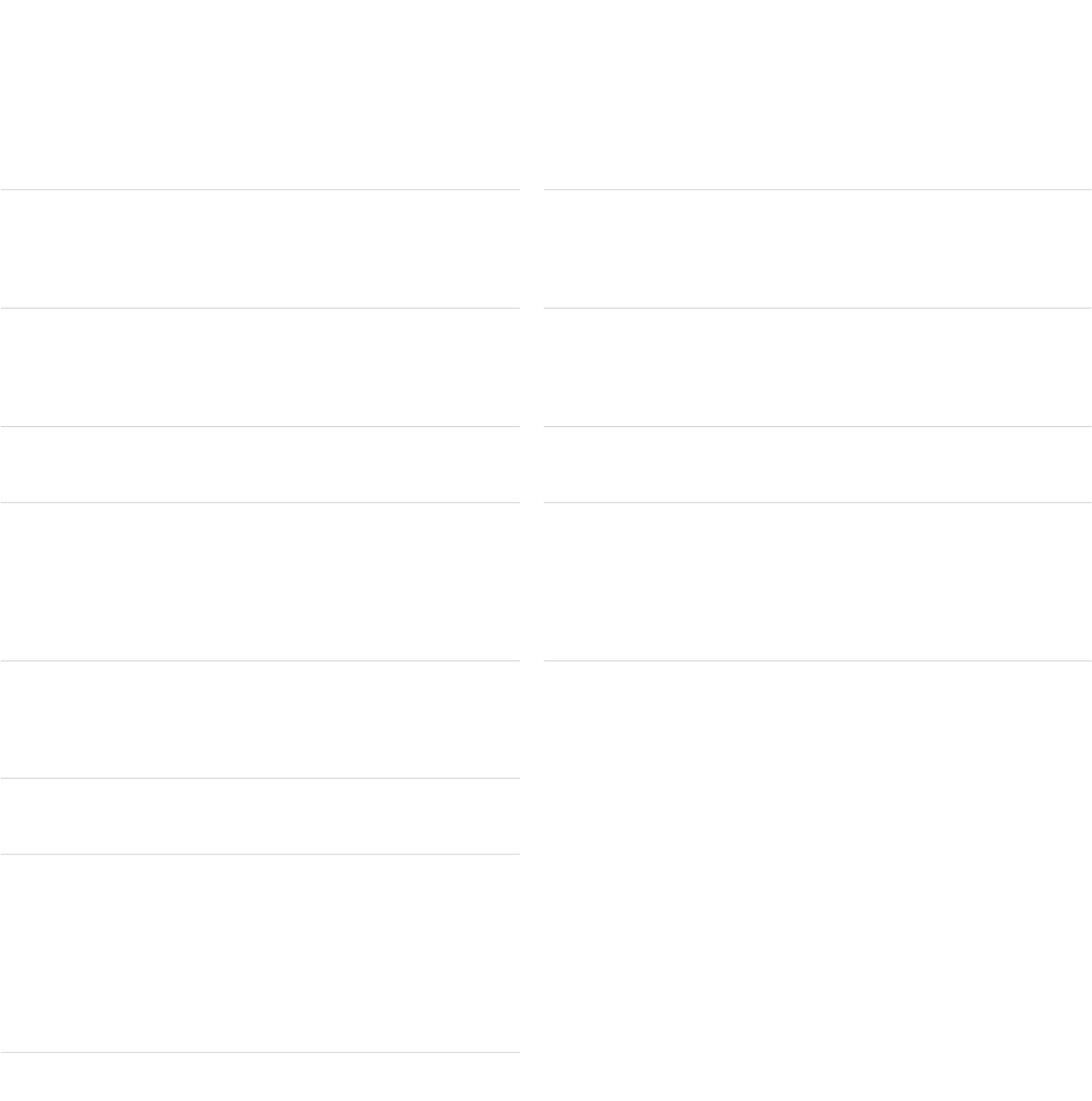

Technical Specifications
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=718,h=726,fit=crop,trim=0;2.9444444444444446;0;2.9444444444444446/mv04R3PkQ3T04E33/pal-i606-mnl6LreyWvH3ZprB.png)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=328,h=351,fit=crop,trim=0;60.91954022988506;0;60.91954022988506/mv04R3PkQ3T04E33/pal-i606-mnl6LreyWvH3ZprB.png)
